B series Mobile Racks

Maximum manageability and manoeuvrability

A tried and trusted standard design, perfect for moderately heavy material, including furniture parts.

Fully adjustable rack length

Mobile racks with fully adjustable rack length are perfect for loads of similar lengths, from 600 mm long. Die The length of the racks is precision-adjustable. Due to the design of the rack, the uprights always remain parallel during adjustment, avoiding the need for any additional struts.

B-780-X

The versatile rack with fully adjustable length

Our invention, the Dabelju-VV rack, stands out from other JOWI Mobile Racks with adjustable rack length. Each storey is equipped with 4 support tubes, making it the ideal solution for loads of similar lengths, but also for storing short and long parts.

Dabelju-B590-VV

Space-saving if the rack is empty

The length of empty racks can quickly and easily be reduced to a fraction of their overall length. Simply release the cam levers, adjust the rack to the desired length, and lock into place using the cam levers.

The versatile rack:

Dabelju B-VV

Fully length-adjustable Mobile Rack. The rack is secured at the desired length using 2 cam levers.
Standard design with a T-shaped chassis for double-sided storage and transport.

Range of use:
Can be adjusted to accommodate items of different lengths, from approx. 200 to approx. 2500 mm long and approx. 590 mm or 780 mm wide.

Dabelju-B590-VV

Technical data

Dabelju B-VV

MODEL	Dabelju B590-VV	Dabelju B780-VV

L-shaped uprights with support tubes	0	0
i-shaped uprights with support tubes	4 (rotatable)	4 (rotatable)
Slots for support tubes per upright	16	16
Number of support tubes per upright = storeys	16	16
Spacing	66 mm	66 mm
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES
Diameter of support tubes	23 mm	23 mm
Usable length of support tubes	590 mm	780 mm
Maximum load per support tube / per storey with 4 support tubes	15/60 kg*	11/44 kg*
Maximum load of the whole rack if laden on one side/both sides	150/200 kg*	150/200 kg*
Ball bearing steering castors with cast polyurethane tread	4 x Ø 125 mm	4 x Ø 125 mm
Number of lockable castors	2	2
Length x width/width double-sided x height in mm	550 - 1480 x 790/1380 x 1770	550 - 1480 x 980/1760 x 1770
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

The compact rack:

B-X (up to 1.5 m)

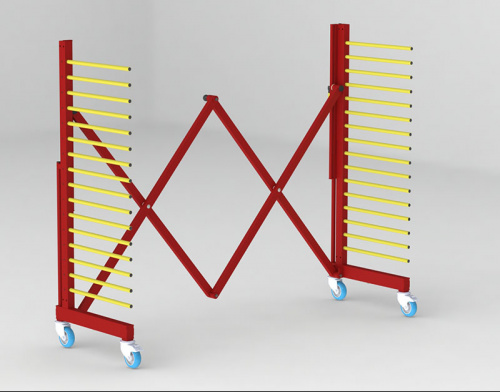

Convenient and reliable: Mobile Rack with fully adjustable rack length between 500 and 1,500 mm. The rack is secured at the desired length using 2 cam levers.

Range of use:
Perfect for loads of similar lengths – from 600 mm to approx. 3000 mm long.

B590-X

B780-X

Technical data

B-X

MODEL	B590-X	B780-X

L-shaped uprights with support tubes	2	2
i-shaped uprights with support tubes	0	0)
Slots for support tubes per upright	16	16
Number of support tubes per upright = storeys	16	16
Spacing	66 mm	66 mm
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES
Diameter of support tubes	23 mm	23 mm
Usable length of support tubes	590 mm	780 mm
Maximum load per support tube / per storey with 2 support tubes	15/30 kg*	11/22 kg*
Maximum load of the whole rack	200 kg*	320 kg*
Ballbearing steering castors with cast polyurethane tread	4 x Ø 125 mm	4 x Ø 125 mm
Number of lockable castors	2	2
Length x width x height in mm	500 - 1500 x 740 x 1810	500 - 1500 x 930 x 1810
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

B-XX (up to 3 m)

Fully length-adjustable Mobile Rack from 500 to 3000 mm. The rack is secured at the desired length using 2 cam levers.

Range of use:
Can be adjusted to accommodate items of different lengths, from approx. 600 mm to approx. 5000 mm long.

B590-XX

B780-XX

Technical data

B-XX

MODEL	B590-XX	B780-XX

L-shaped uprights with support tubes	2	2
i-shaped uprights with support tubes	0	0
Number of support tube holes on each upright	16	16
Number of support tubes per upright = storeys	16	16
Spacing	66 mm	66 mm
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES
Diameter of support tubes	23 mm	23 mm
Usable length of support tubes	590 mm	780 mm
Maximum load per support tube / per storey with 2 support tubes	15/30 kg*	11/22 kg*
Maximum load of the whole rack if laden on one side	200 kg*	320 kg*
Ballbearing steering castors with cast polyurethane tread	4 x Ø 125 mm	4 x Ø 125 mm
Number of lockable castors	2	2
Length x width x height in mm	500 - 3000 x 740 x 1810	500 - 3000 x 930 x 1810
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

B-X3 (up to 3 m)

Fully length-adjustable Mobile Rack from 500 to 3000 mm. Extra support due to the third L-shaped upright. Fixierung durch 3 Exzenterhebel. The rack is secured at the desired length using 3 cam levers.

Range of use:
Can be adjusted to accommodate items of similar lengths, from approx. 600 mm to 5000 mm long.

B590-X3

B780-X3

Technical data

B-X3

MODEL	B590-X3	B780-X3

L-shaped uprights with support tubes	3	3
i-shaped uprights with support tubes	0	0
Number of support tube holes on each upright	16	16
Number of support tubes per upright = storeys	16	16
Spacing	66 mm	66 mm
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES
Diameter of support tubes	23 mm	23 mm
Usable length of support tubes	590 mm	780 mm
Maximum load per support tube / per storey with 3 support tubes	15/45 kg*	11/33 kg*
Maximum load of the whole rack	320 kg*	480 kg*
Ballbearing steering castors with cast polyurethane tread	6 x Ø 125 mm	6 x Ø 125 mm
Number of lockable castors	3	3
Length x width x height in mm	500 - 3000 x 740 x 1810	500 - 3000 x 930 x 1810
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

You decide how much space you need between each storey.

A few quick and easy turns of a hexagon socket set screw is all it takes to adjust the height of each storey to exactly how you want it.

Manoeuvring is child's play

even in restricted areas with a full load, thanks to ball bearing steering castors and their convex tread

"Scissor" frame or fixed frame: you save space whichever you choose.

Unloaded JOWI fixed frame racks stack simply inside one another. And it’s just as simple if you choose the scissor frame design. The length of empty racks can quickly and easily be reduced to a fraction of their overall length.
