R series Mobile Racks

As strong as the C series, but with more storage and greater versatility

Available in different depths and with adjustable storey heights. Pre-punched with 31 support tube holes, this design is the most versatile solution in terms of spacing. This is a significant benefit if the material on the rack is always a different shape or size.

Fully adjustable rack length

Mobile Racks with adjustable length are the ideal solution if you need to store parts of similar length, starting with 600 mm. The length of these racks is precision-adjustable. Thanks to the very sturdy scissor design no additional lateral rails are necessary.

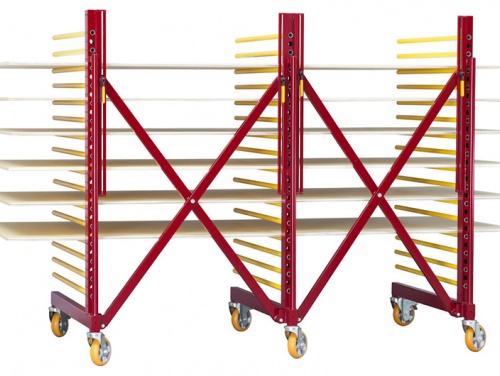

R900-X3 with 16 storeys zoom
R-900-X with 16 storeys

Space-saving if the rack is empty

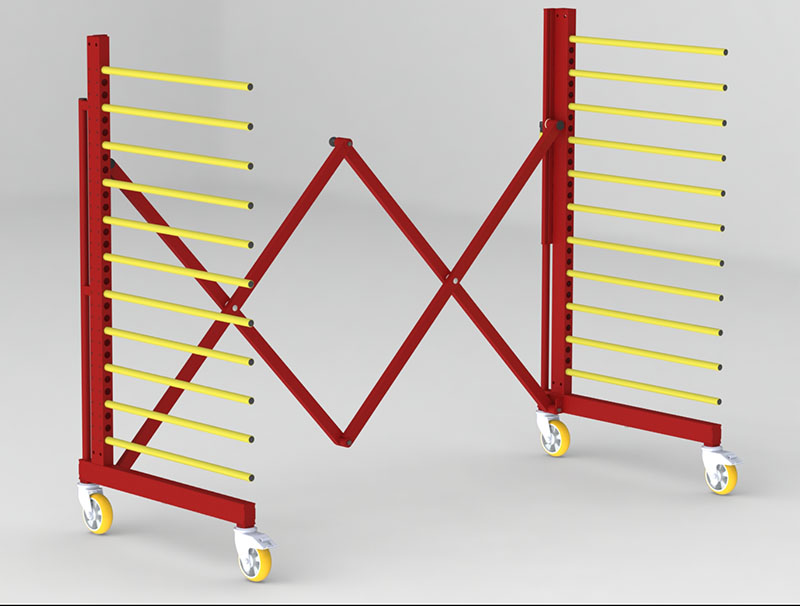

Quickly and easily adjusted to reduce the length of empty racks. Release the two cam levers, set the desired length, secure the cam levers.

R-X (up to 1.5 m)

Conventient, reliable and sturdy: fully length-adjustable Mobile Racks, from 500 up to 1600 mm. The rack is secured at the desired length using 2 cam levers.


Range of use:
For items with similar length from about 600 mm up to 3000 mm.
R660-X with 16 storeys zoom
2 R660-X with 11 storeys and coupling zoom

Technical data

R-X

MODELR660-XR770-X #R900-XR1100-X
L-shaped uprights with support tubes2222
i-shaped uprights with support tubes0000
Number of support tube holes on each upright31313131
Number of support tubes per upright = storeys16 (11 on request)11 (16 on request)11 (16 on request)11 (16 on request)
Spacing66 mm (113 mm with 11 storeys)113 mm (66 mm with 16 storeys)113 mm (66 mm with 16 storeys)113 mm (66 mm with 16 storeys)
Fixture of support tubes: pre-punched holes for adjustable spacingYESYESYESYES
Diameter of support tubes29 mm29 mm29 mm29 mm
Usable length of support tubes660 mm770 mm900 mm1100 mm
Maximum load per support tube / per storey with 2 support tubes28 / 56 kg*22 / 44 kg*20 / 40 kg*16 / 32 kg*
Maximum load of the whole rack500 kg*500 kg*500 kg*500 kg*
Ball bearing steering castors with cast polyurethane tyres4 x Ø 160 mm4 x Ø 160 mm4 x Ø 160 mm4 x Ø 160 mm
Davon Anzahl der Rollen mit Feststeller2222
Number of lockable castors0 (2 on request)**0 (2 on request)**0 (2 on request)**0 (2 on request)**
Length x width x height in mm500 - 1600 x 850 x 1920500 - 1600 x 960 x 1920500 - 1600 x 1090 x 1920500 - 1600 x 1290 x 1920
Painted steel frameRAL 3004 crimsonRAL 3004 crimsonRAL 3004 crimsonRAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

# Available as a customised rack

* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available

R-XX (up to 3 m)

Conventient, reliable and sturdy: fully length-adjustable Mobile Racks, from 600 up to 3000 mm. The rack is secured at the desired length using 2 cam levers.


Range of use:
For items with similar length from about 500 mm up to 5000 mm.
R660-XX zoom
R900-XX zoom

Technical data

R-XX

MODELR660-XXR770-XX #R900-XXR1100-XX
L-shaped uprights with support tubes2222
i-shaped uprights with support tubes0000
Number of support tube holes on each upright31313131
Number of support tubes per upright = storeys
16 (11 on request)
11 (16 on request)11 (16 on request)11 (16 on request)
Spacing66 mm (113 mm with 11 storeys)113 mm (66 mm with 16 storeys)113 mm (66 mm with 16 storeys)113 mm (66 mm with 16 storeys)
Fixture of support tubes: pre-punched holes for adjustable spacingYESYESYESYES
Diameter of support tubes29 mm29 mm29 mm29 mm
Usable length of support tubes660 mm770 mm900 mm1100 mm
Maximum load per support tube / per storey with 2 support tubes28 / 56 kg*22 / 44 kg*20 / 40 kg*16/ 32 kg*
Maximum load of the whole rack500 kg*500 kg*500 kg*500 kg*
Ball bearing steering castors with cast polyurethane tyres4 x Ø 160 mm4 x Ø 160 mm4 x Ø 160 mm4 x Ø 160 mm
Number of lockable castors2222
Number of direction-lockable castors0 (2 on request)**0 (2 on request)**0 (2 on request)**0 (2 on request)**
Length x width x height in mm500 - 3200 x 850 x 1920500 - 3200 x 960 x 1920500 - 3200 x 1090 x 1920500 - 3200 x 1290 x 1920
Painted steel frameRAL 3004 crimsonRAL 3004 crimsonRAL 3004 crimsonRAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

# Available as a customised rack

* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available



R-X3 (up to 3 m)

Conventient, reliable and sturdy: fully length-adjustable Mobile Racks, from 500 up to 3000 mm. The rack is secured at the desired length using 4 cam levers. Special high load capacity and extra support due to the third L-shaped upright.

Range of use:
For items with similar length from about 600 mm up to 5000 mm. The right choice for long and heavy material, such as boards, planks etc. Depending on the support depth this rack is stable and secure when handling large-size material.
R900-X3 with 16 storeys - the spacious rack zoom
R1100-X3 with 16 storeys - the profound rack

Technical data

R-X3

MODELR660-X3R770-X3 #R900-X3R1100-X3 #
L-shaped uprights with support tubes3333
i-shaped uprights with support tubes0000
Number of support tube holes on each upright31313131
Number of support tubes per upright = storeys16 (11 on request)11 (16 on request)11 (16 on request)11 (16 on request)
Spacing66 mm (113 mm with 11 storeys)113 mm (66 mm with 16 storeys)113 mm (66 mm with 16 storeys)113 mm (66 mm with 16 storeys)
Fixture of support tubes: pre-punched holes for adjustable spacingYESYESYESYES
Diameter of support tubes29 mm29 mm29 mm29 mm
Usable length of support tubes660 mm770 mm900 mm1.100 mm
Maximum load per support tube / per storey with 3 support tubes28 / 84 kg*22 / 66 kg*20 / 60 kg*16 / 48 kg*
Maximum load of the whole rack750 kg*750 kg*750 kg*750 kg*
Ball bearing steering castors with cast polyurethane tyres6 x Ø 160 mm6 x Ø 160 mm6 x Ø 160 mm6 x Ø 160 mm
Number of lockable castors3333
Number of direction-lockable castors0 (2 on request)**0 (2 on request)**0 (2 on request)**0 (2 on request)**
Length x width x height in mm500 - 3200 x 850 x 1920500 - 3200 x 896 x 1920500 - 3200 x 1090 x 1920500 - 3200 x 1290 x 1920
Painted steel frameRAL 3004 crimsonRAL 3004 crimsonRAL 3004 crimsonRAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

# Available as a customised rack

* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available
