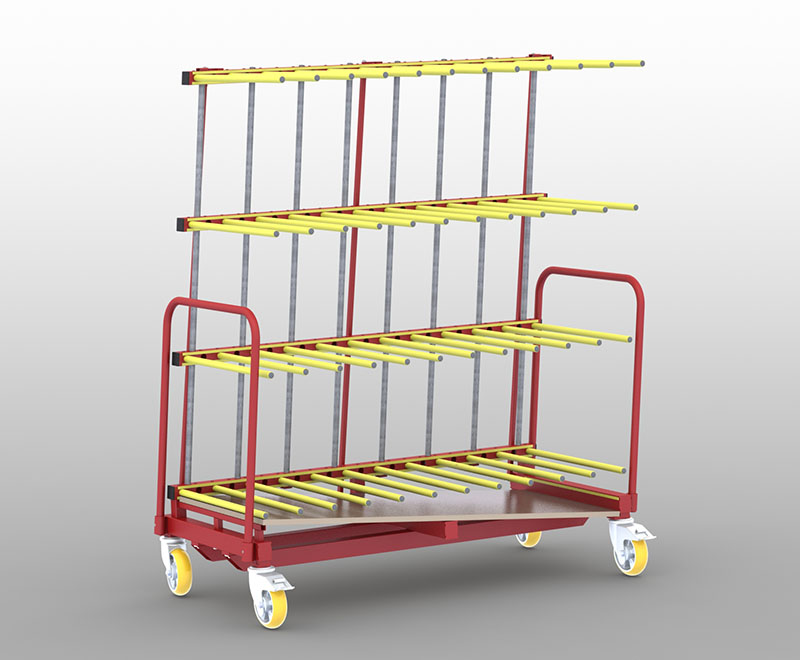

CA2 with 22 compartments
For vertical loads with parts according to their surface or with delicate surfaces up to 2,500 mm long. The compartments are 40 mm wide.

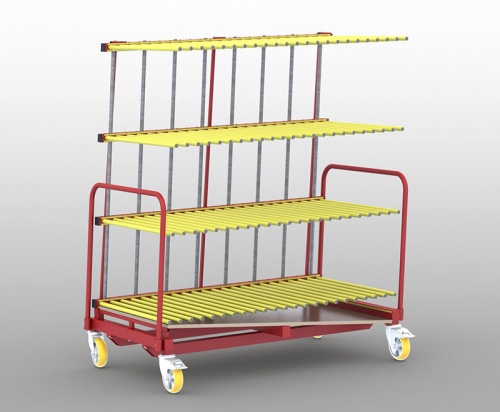

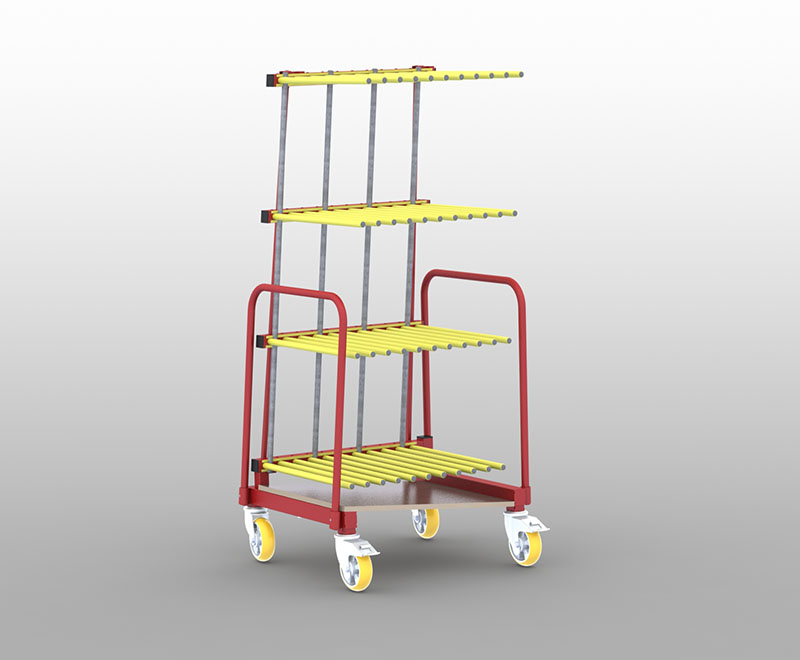

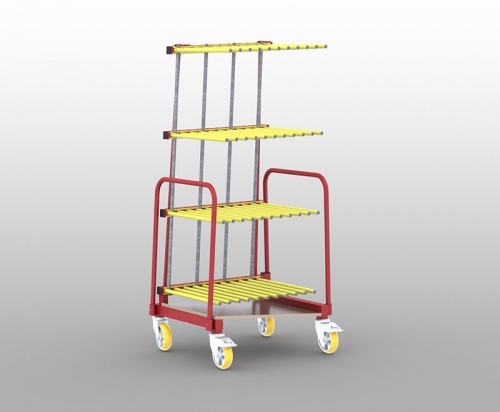

Capreolus CA2-590-4-92 with 22 compartments

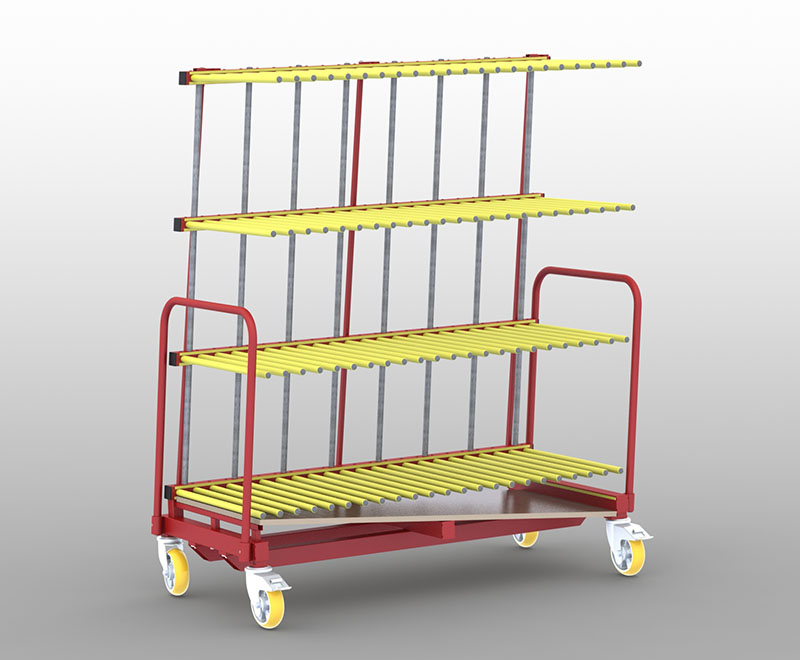

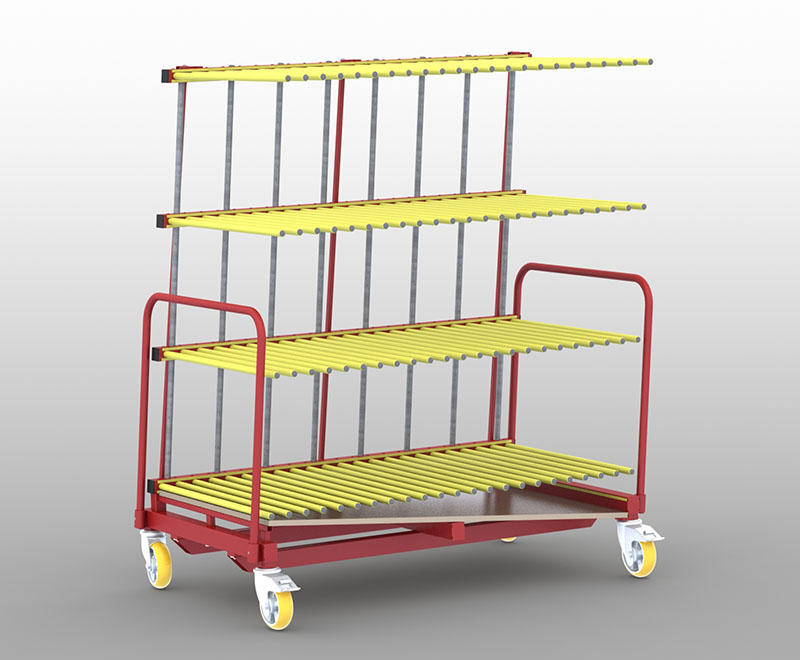

Capreolus CA2-780-4-92 with 22 compartments
Technical data
CA2 with 22 compartments
| MODEL | CA2-590-4-92 | CA2-780-4-92 | CA2-920-4-92 |
| Horizontal rails | 4 (2 of which are height-adjustable) | 4 (2 of which are height-adjustable) | 4 (2 of which are height-adjustable) |
| Slots for support tubes per horizontal rail | 23 | 23 | 23 |
| Support tubes | 92 (23 per horizontal rail) | 92 (23 per horizontal rail) | 92 (23 per horizontal rail) |
| Compartments | 22 (each with 40 mm spacing) | 22 (each with 40 mm spacing) | 22 (each with 40 mm spacing) |
| Diameter of support tubes | 23 mm | 23 mm | 23 mm |
| Usable length of support tubes | 590 mm | 780 mm | 920 mm |
| Fixture of support tubes: Pre-punched holes for adjustable compartment spacing | YES | YES | YES |
| 1 bottom shelf | 1,400 x 590 mm | 1,400 x 780 mm | 1,400 x 920 mm |
| Maximum load of the whole rack | 600 kg* | 600 kg * | 600 kg* |
| Ballbearing steering castors with cast polyurethane tread | 4 Ø 160 mm | 4 Ø 160 mm | 4 Ø 160 mm |
| Number of lockable castors | 2 | 2 | 2 |
| Number of direction-lockable castors | 0 (2 on request)** | 0 (2 on request)** | 0 (2 on request)** |
| Length x width x height in mm | 1,600 x 725 x 1,740 | 1,600 x 915 x 1,740 | 1,600 x 1,055 x 1,740 |
| Painted steel frame | RAL 3004 crimson | RAL 3004 crimson | RAL 3004 crimson |
| Shipped part-assembled in a box L x W x H in mm | |||
| Net / gross weight in kg | |||
| 6 boxes per pallet L x W x H in mm | |||
# Available as a customised rack
* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available
In case you need another compartment spacing, please let us know. We are happy to send you a customized offer.
CA2 with 11 compartments
For vertical loads with parts according to their surface or with delicate surfaces up to 2,500 mm long. The compartments are 103 mm wide.

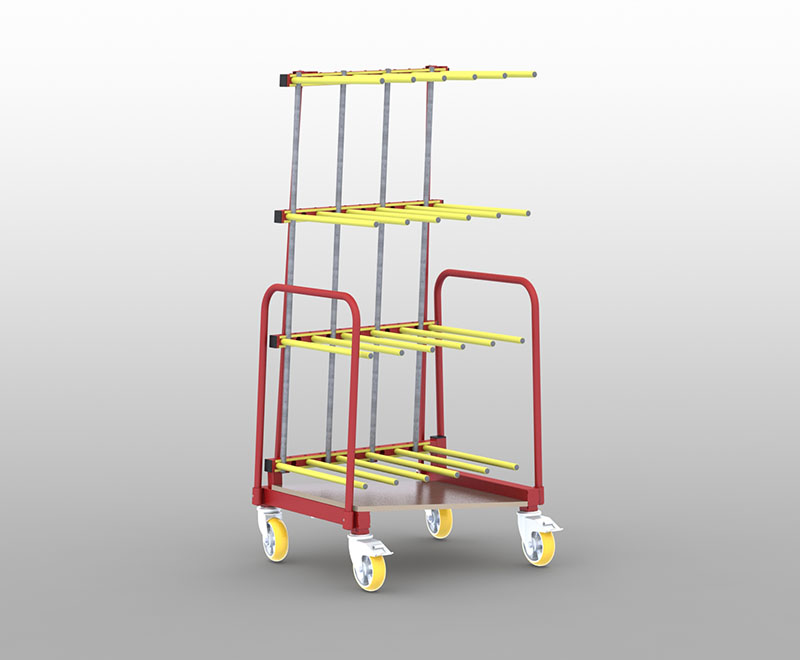

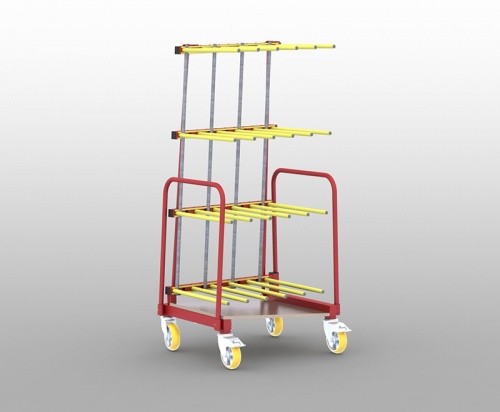

Capreolus CA2-590-4-48 with 11 compartments

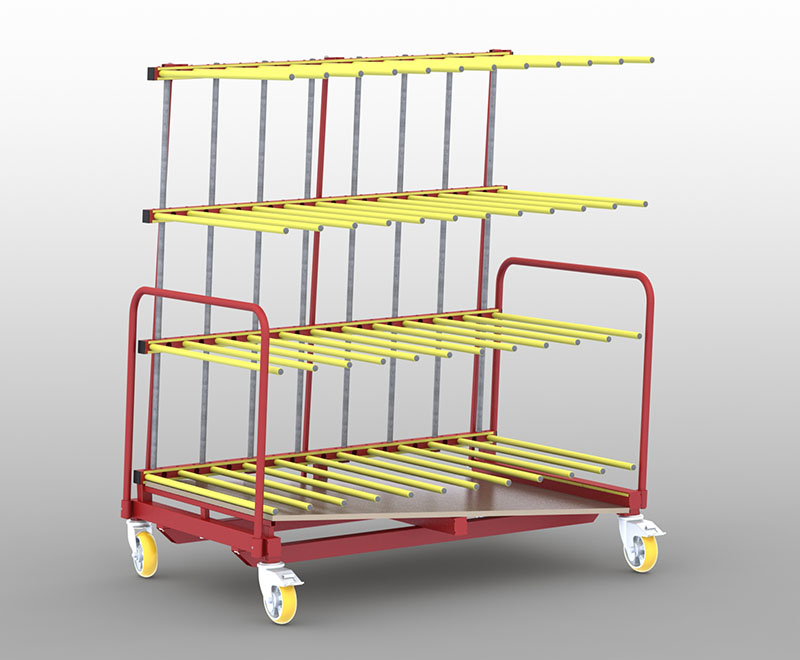

Capreolus CA2-920-4-48 with 11 compartments
Technical data
CA2 with 11 compartments
| MODEL | CA2-590-4-48 | CA2-780-4-48 | CA2-920-4-48 # |
| Horizontal rails | 4 (2 of which are height-adjustable) | 4 (2 of which are height-adjustable) | 4 (2 of which are height-adjustable) |
| Slots for support tubes per horizontal rail | 23 | 23 | 23 |
| Support tubes | 48 (12 per horizontal rail) | 48 (12 per horizontal rail) | 48 (12 per horizontal rail) |
| Compartments | 11 (each with 103 mm spacing) | 11 (each with 103 mm spacing) | 11 (each with 103 mm spacing) |
| Diameter of support tubes | 23 mm | 23 mm | 23 mm |
| Usable length of support tubes | 590 mm | 780 mm | 920 mm |
| Fixture of support tubes: Pre-punched holes for adjustable compartment spacing | YES | YES | YES |
| 1 bottom shelf | 1,400 x 590 mm | 1,400 mm x 780 mm | 1,400 mm x 920 mm |
| Maximum load of the whole rack | 600 kg* | 600 kg * | 600 kg* |
| Ballbearing steering castors with cast polyurethane tread | 4 Ø 160 mm | 4 Ø 160 mm | 4 Ø 160 mm |
| Number of lockable castors | 2 | 2 | 2 |
| Number of direction-lockable castors | 0 (2 on request)** | 0 (2 on request)** | 0 (2 on request)** |
| Length x width x height in mm | 1,600 x 725 x 1,740 | 1,600 x 915 x 1,740 | 1,600 x 1,055 x 1,740 |
| Painted steel frame | RAL 3004 crimson | RAL 3004 crimson | RAL 3004 crimson |
| Shipped part-assembled in a box L x W x H in mm | |||
| Net / gross weight in kg | |||
| 6 boxes per pallet L x W x H in mm | |||
# Available as a customised rack
* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available
In case you need another compartment spacing, please let us know. We are happy to send you a customized offer.
for small consignments:
CA1H - short rack
For vertical loads with parts according to their surface or with delicate surfaces up to 2,500 mm long. The compartments are 40 or 103 mm wide.
CA1H-590-4-44 with 10 compartments
CA1H-590-4-24 with 5 compartments
Technical data
CA1H - short rack
| MODEL | CA1H-590-4-44 | CA1H-590-4-24 |
| Horizontal rails | 4 (2 of which are height-adjustable) | 4 (2 of which are height-adjustable) |
| Slots for support tubes per horizontal rail | 11 | 11 |
| Support tubes | 44 (11 per horizontal rail) | 24 (6 per horizontal rail) |
| Compartments | 10 (each with 40 mm spacing) | 5 (each with 103 mm spacing) |
| Diameter of support tubes | 23 mm | 23 mm |
| Usable length of support tubes | 590 mm | 590 mm |
| Fixture of support tubes: Pre-punched holes for adjustable compartment spacing | YES | YES |
| Bottom shelf 715 x 590 mm | 1 | 1 |
| Maximum load of the whole rack | 400 kg* | 400 kg * |
| Steering castors with cast polyurethane tread | 4 Ø 160 mm | 4 Ø 160 mm |
| Number of lockable castors | 2 | 2 |
| Number of direction-lockable castors | 0 (1 on request)** | 0 (1 on request)** |
| Length x width x height in mm | 860 x 720 x 1,740 | 860 x 720 x 1,740 |
| Painted steel frame | RAL 3004 crimson | RAL 3004 crimson |
| Shipped part-assembled in a box L x W x H in mm | ||
| Net / gross weight in kg | ||
| 8 boxes per pallet L x W x H in mm |
# Available as a customised rack
* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available
Designs with support tube lengths of 780 mm and 920 mm are avaible as customised racks.
