Picus transports material standing up or lying down

The particularly versatile model for transporting large panels and frames (stored individually) such as worktops, doors, windows and frames. Support tubes can also be used to transport material horizontally.

The Transport Rack is inclined to the back to ensure that material is kept safe during transport.

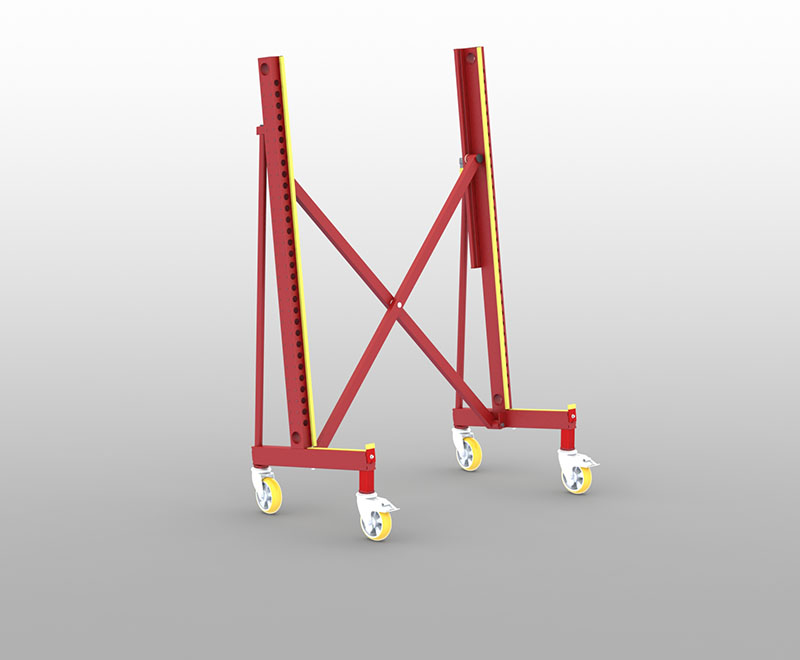

PI1-X (up to 1.5 m)

Convenient, reliable and sturdy:  Fully length-adjustable Transport Rack from 500 to 1,600 mm. The rack is secured at the desired length using 2 cam levers.


Range of use:
For boards/material of similar lengths from approx. 600 mm to approx. 3,000 mm
PI360-X zoom

Technical data

PI1-X (up to 1.5 m)
MODELPicus PI1-360-X
L-shaped uprights without support tubes2
i-shaped uprights with support tubes0
Number of support tube holes on each upright31
Number of support tubes per upright = storeys0 (available on request)
Spacingdepends on the number of support tubes
Fixture of support tubes: Pre-punched holes for adjustable spacingYES
Diameter of support tubes29 mm
Usable length of support tubes360 mm
Maximum load per support tube / per storey with 2 support tubes50 / 100 kg *
Maximum load of the whole rack600 kg *
Ballbearing steering castors with cast polyurethane tread4 x Ø 160 mm
Number of lockable castors2
Number of direction-lockable castors0 (2 on request)**
Length x width x height in mm500 - 1,600 x 750 x 1,970
Painted steel frameRAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm
# Available as a customised rack
* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available

PI1-XX (up to 3 m)

Convenient, reliable and sturdy: Fully length-adjustable Transport Rack from 500 to 3,000 mm. The rack is secured at the desired length using 2 cam levers.



Range of use:
Perfect for loads of similar lengths – from 600 mm to approx. 5,000 mm long.
PI360-XX zoom

Technical data

PI1-XX (up to 3 m)
MODELPicus PI1-360-XX
L-shaped uprights without support tubes2
i-shaped uprights with support tubes0
Number of support tube holes on each upright31
Number of support tubes per upright = storeys0 (available on request)
Spacingdepends on the number of support tubes
Fixture of support tubes: Pre-punched holes for adjustable spacingYES
Diameter of support tubes29 mm
Usable length of support tubes360 mm
Maximum load per support tube / per storey with 2 support tubes50 / 100 kg *
Maximum load of the whole rack600 kg *
Ballbearing steering castors with cast polyurethane tread4 x Ø 160 mm
Number of lockable castors2
Number of direction-lockable castors0 (2 on request)**
Length x width x height in mm500 - 3,200 x 750 x 1,970
Painted steel frameRAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

# Available as a customised rack

* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available

PI1-X3 (up to 3 m)

Convenient, reliable and sturdy: Fully length-adjustable Transport Rack from 500 to 3,200 mm. The rack is secured at the desired length using 4 cam levers. Extra support due to the third L-shaped upright.


Range of use:
Perfect for loads of similar lengths – from 600 mm to approx. 5,000 mm long if an additional central support is requested.
PI360-X3 zoom

Technical data

PI1-X3 (up to 3 m)
MODELPicus PI1-360-X3
L-shaped uprights without support tubes3
i-shaped uprights with support tubes0
Number of support tube holes on each upright31
Number of support tubes per upright = storeys0 (available on request)
Spacingdepends on the number of support tubes
Fixture of support tubes: Pre-punched holes for adjustable spacingYES
Diameter of support tubes29 mm
Usable length of support tubes360 mm
Maximum load per support tube / per storey with 2 support tubes50 / 150 kg *
Maximum load of the whole rack600 kg *
Ballbearing steering castors with cast polyurethane tread6 x Ø 160 mm
Number of lockable castors3
Number of direction-lockable castors0 (2 on request)**
Length x width x height in mm500 - 3,200 x 750 x 1,970
Painted steel frameRAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

# Available as a customised rack

* Please note: loads must be evenly distributed. No impact loads
** Customised rack only – retrofitting not available
